Cone Modular CBH - BT40

Variações disponíveis

qntd.

06018 - Cone Modular CBH - BT40-CBH1-75mm

06019 - Cone Modular CBH - BT40-CBH1-105mm

06020 - Cone Modular CBH - BT40-CBH2-85mm

06021 - Cone Modular CBH - BT40-CBH2-115mm

06022 - Cone Modular CBH - BT40-CBH2-165mm

06023 - Cone Modular CBH - BT40-CBH2-200mm

06024 - Cone Modular CBH - bt40-cbh3-95mm

06025 - Cone Modular CBH - bt40-cbh3-125mm

06026 - Cone Modular CBH - bt40-cbh3-155mm

06027 - Cone Modular CBH - bt40-cbh3-185mm

06029 - Cone Modular CBH - bt40-cbh4-85mm

06030 - Cone Modular CBH - bt40-cbh4-135mm

06031 - Cone Modular CBH - bt40-cbh4-175mm

06032 - Cone Modular CBH - bt40-cbh4-205mm

06033 - Cone Modular CBH - bt40-cbh4-250mm

06034 - Cone Modular CBH - bt40-cbh4-300mm

06035 - Cone Modular CBH - bt40-cbh5-75mm

06036 - Cone Modular CBH - bt40-cbh5-125mm

06037 - Cone Modular CBH - bt40-cbh5-175mm

06038 - Cone Modular CBH - bt40-cbh5-205mm

06039 - Cone Modular CBH - bt40-cbh5-250mm

06040 - Cone Modular CBH - bt40-cbh6-55mm

06041 - Cone Modular CBH - bt40-cbh6-115mm

06042 - Cone Modular CBH - bt40-cbh6-165mm

06043 - Cone Modular CBH - bt40-cbh6-200mm

06044 - Cone Modular CBH - bt40-cbh6-250mm

06045 - Cone Modular CBH - bt40-cbh6-300mm

adicionar cotação

06034 - Cone Modular CBH - bt40-cbh4-300mm

Descrição

- Modelo: BT40-CBH4-300

Dimensões

- L: 365,40mm
- L1: 300mm
- L2: 273mm
- L3: 10mm
- L4: 39mm
- L5: 27mm
- D: 63mm
- d2: 39mm
- d1: 22mm
- Rosca: M8*0.75P

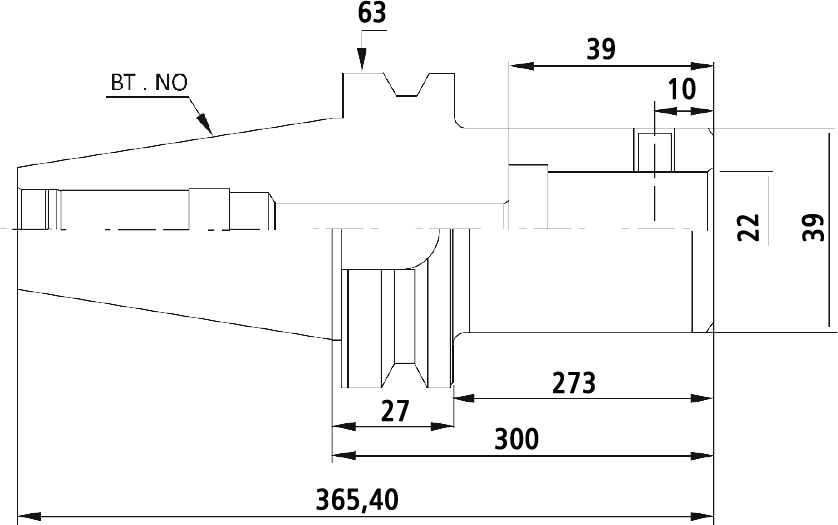

Desenho Técnico
