Cone Modular CBH - SK40

Cone Modular CBH - SK40

Cone Modular CBH - SK40

Variações disponíveis

qntd.

06901 - Cone Modular CBH - SK40 - CBH1-75mm

06902 - Cone Modular CBH - SK40 - CBH1-105mm

06903 - Cone Modular CBH - SK40 - CBH2-85mm

06904 - Cone Modular CBH - SK40 - CBH2-115mm

06905 - Cone Modular CBH - SK40 - CBH2-165mm

06906 - Cone Modular CBH - SK40 - CBH2-200mm

06907 - Cone Modular CBH - SK40 - CBH3-95mm

06908 - Cone Modular CBH - SK40 - CBH3-125mm

06909 - Cone Modular CBH - SK40 - CBH3-155mm

06910 - Cone Modular CBH - SK40 - CBH3-185mm

06911 - Cone Modular CBH - SK40 - CBH3-205mm

06912 - Cone Modular CBH - SK40 - CBH4-85mm

06913 - Cone Modular CBH - SK40 - CBH4-125mm

06914 - Cone Modular CBH - SK40 - CBH4-175mm

06915 - Cone Modular CBH - SK40 - CBH4-205mm

06916 - Cone Modular CBH - SK40 - CBH4-250mm

06918 - Cone Modular CBH - SK40 - CBH5-75mm

06919 - Cone Modular CBH - SK40 - CBH5-125mm

06920 - Cone Modular CBH - SK40 - CBH5-175mm

06921 - Cone Modular CBH - SK40 - CBH5-205mm

06922 - Cone Modular CBH - SK40 - CBH5-250mm

06923 - Cone Modular CBH - SK40 - CBH6-65mm

06924 - Cone Modular CBH - SK40 - CBH6-115mm

06925 - Cone Modular CBH - SK40 - CBH6-165mm

06926 - Cone Modular CBH - SK40 - CBH6-205mm

06927 - Cone Modular CBH - SK40 - CBH6-250mm

adicionar cotação

06916 - Cone Modular CBH - SK40 - CBH4-250mm

Descrição

- Modelo: SK40-CBH4-250

Dimensões

- L1: 250mm

- L2: 230,90mm

- L3: 10mm

- L4: 39mm

- d1: 22mm

- d2: 39mm

- Rosca: M8*0.75P

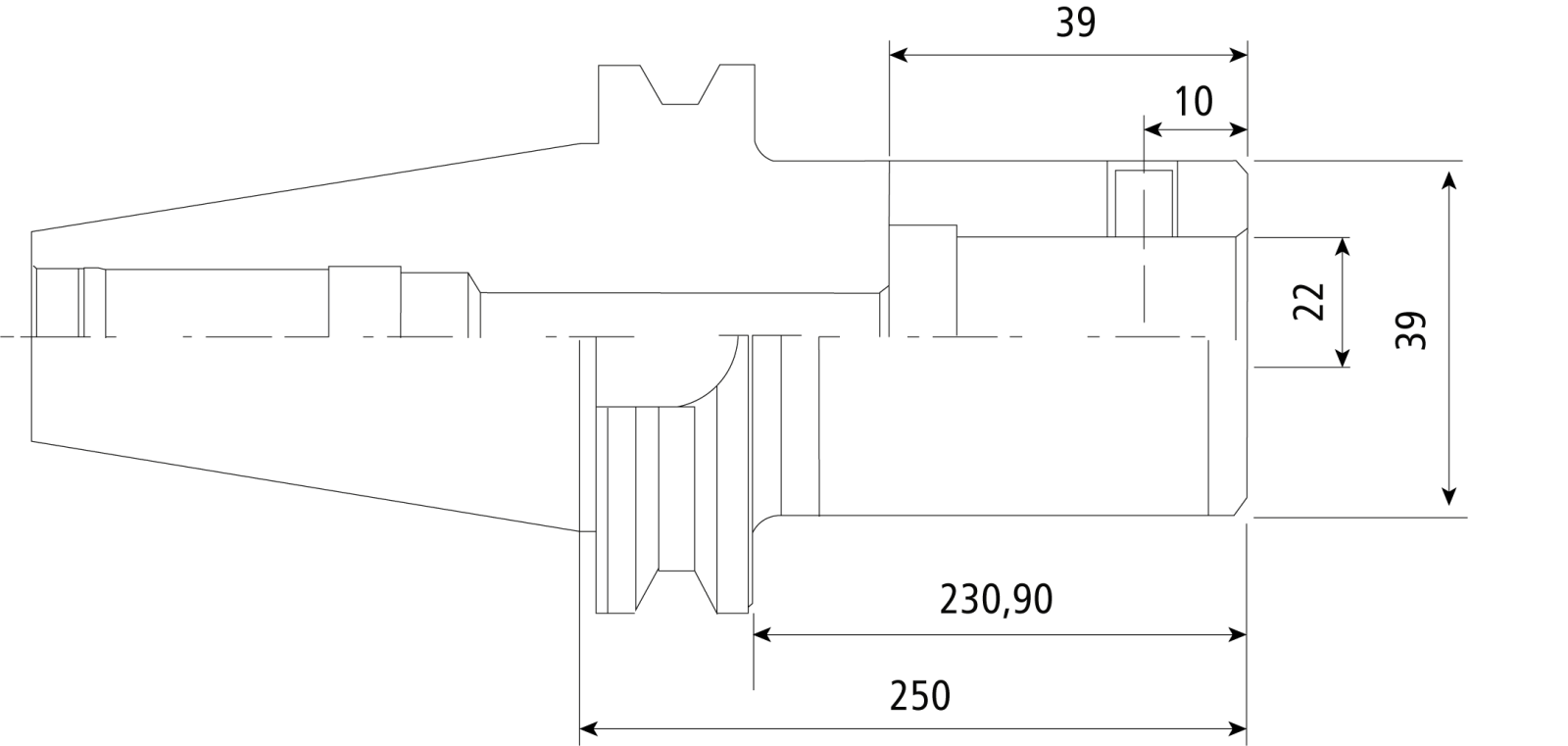

Desenho Técnico
